Dashboard
1 min read
Livingroom Dashboard
Hardware
Component | Details | Image |
|---|---|---|

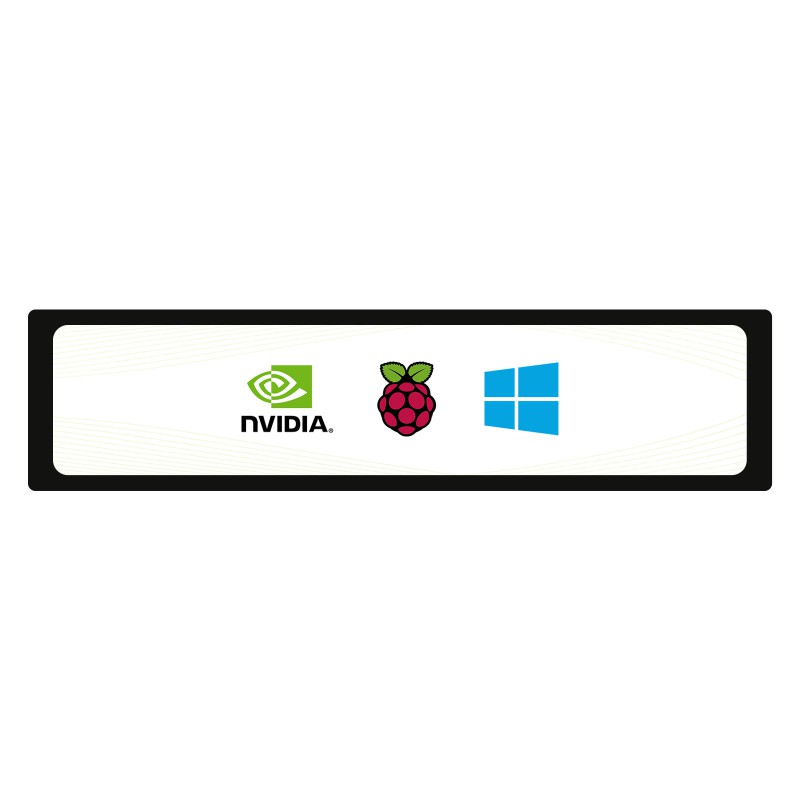

| Display | Waveshare 11.9″ HDMI LCD 320×1480 IPS, capacitive touch, toughened glass panel Wiki |  |
| Computer | Raspberry Pi 4 Model B Rev 1.2 Raspberry Pi OS (Debian GNU/Linux 12 — Bookworm) |  |
Desktop Dashboard
Hardware
Component | Details | Image |
|---|---|---|

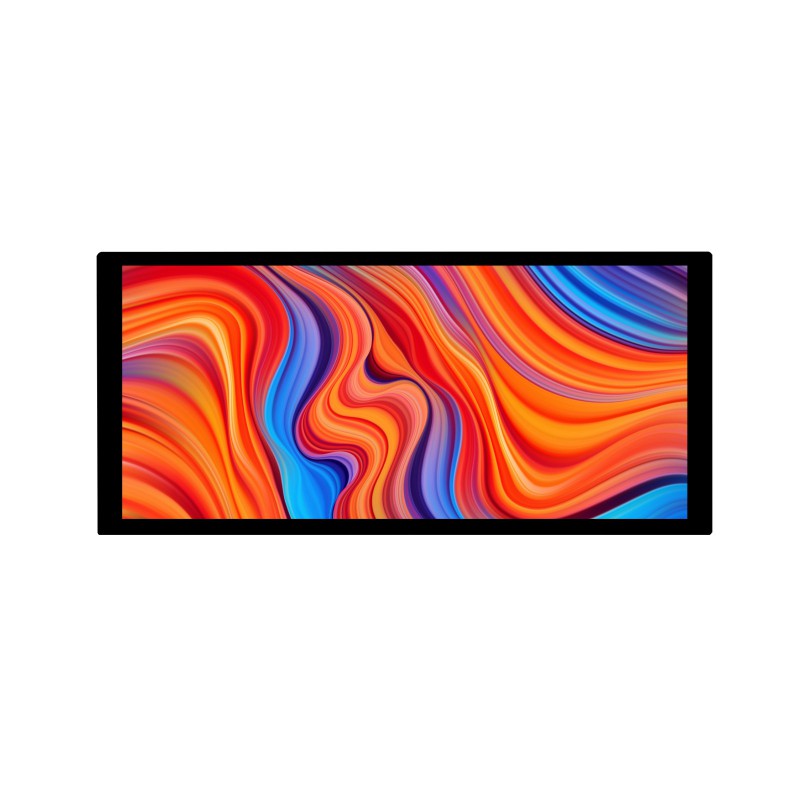

| Display | Waveshare 10.4″ QLED 1600×720, capacitive touch, optical bonding toughened glass, HDMI, 600 cd/m² |  |

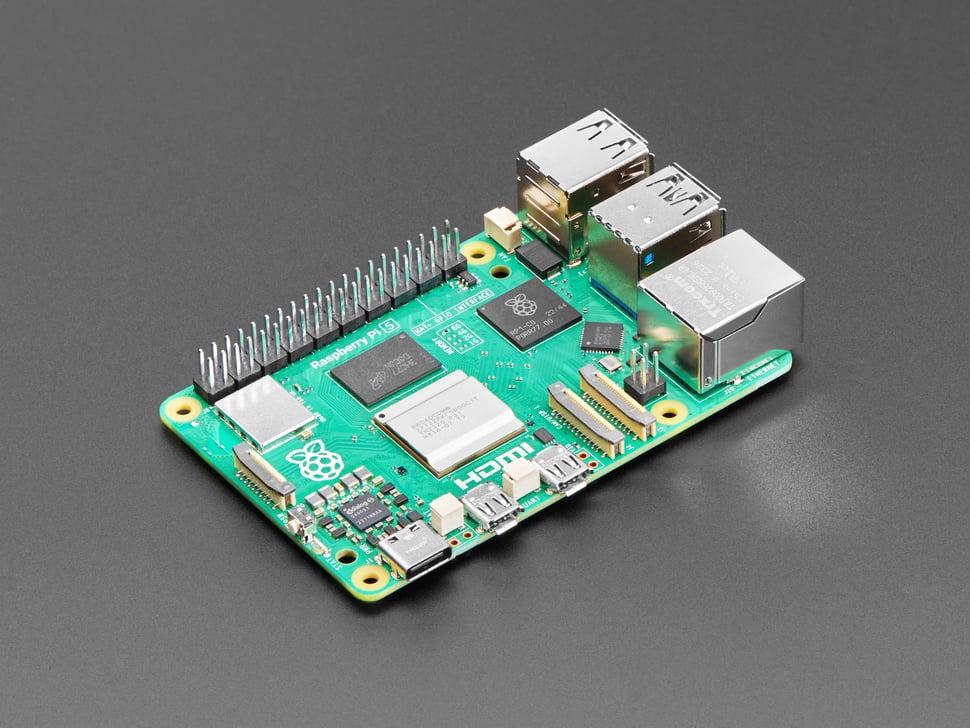

| Computer | Raspberry Pi 5 Model B Rev 1.0 Raspberry Pi OS (Debian GNU/Linux 12 — Bookworm) |  |
| CO₂ Sensor | Sensirion SCD4x CO₂, temperature & humidity. Photoacoustic sensing, 400-5 000 ppm SparkFun SCD4x Breakout |  |

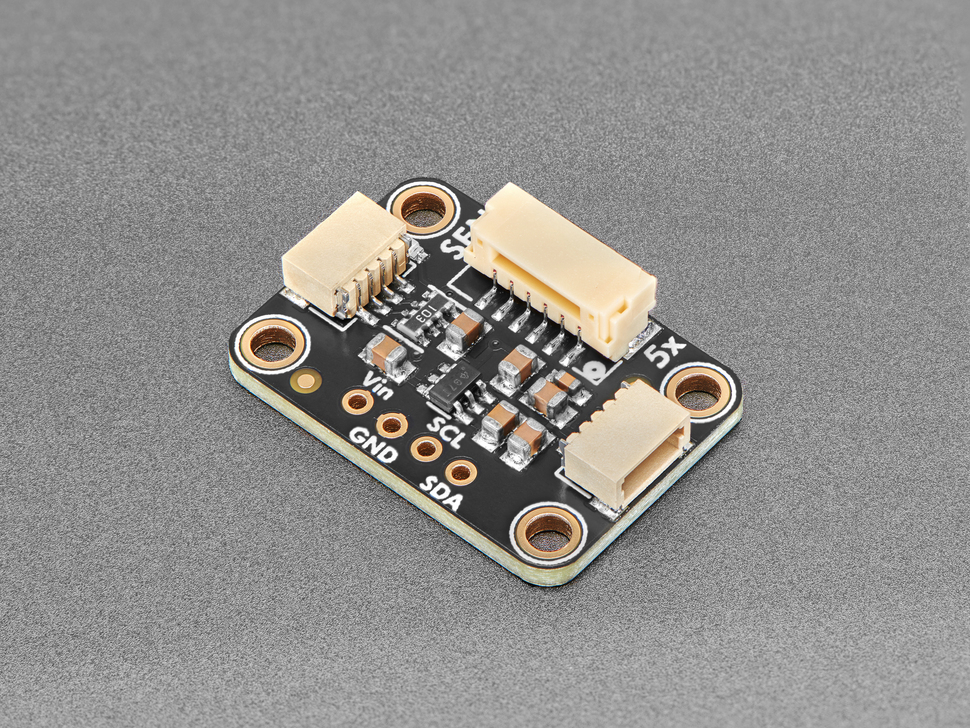

| Env Sensor | Sensirion SEN5x PM1.0 / PM2.5 / PM4.0 / PM10, VOC index, NOx index, temperature & humidity |  |
