Machine Learning

Between 2017 and mid-2019 I spent evenings teaching myself deep learning with a practical goal: photograph a Japanese restaurant menu and read the text automatically. The path went MNIST / notMNIST practice, a large synthetic-font character CNN, a crop-and-predict web demo, then a sequence model (CRNN + CTC) that could read whole menu lines.

Work finished with the June 2019 OCR package (ml_ocr_20190609), so this post is dated to that milestone.

Motivation

Tokyo menus mix kanji, kana, Latin letters, and prices on textured paper, often with vertical layout. Commercial OCR exists, but I wanted to understand every stage — data, training, inference UI — on hardware and notebooks I controlled (mostly Keras / TensorFlow on an AWS Ubuntu box).

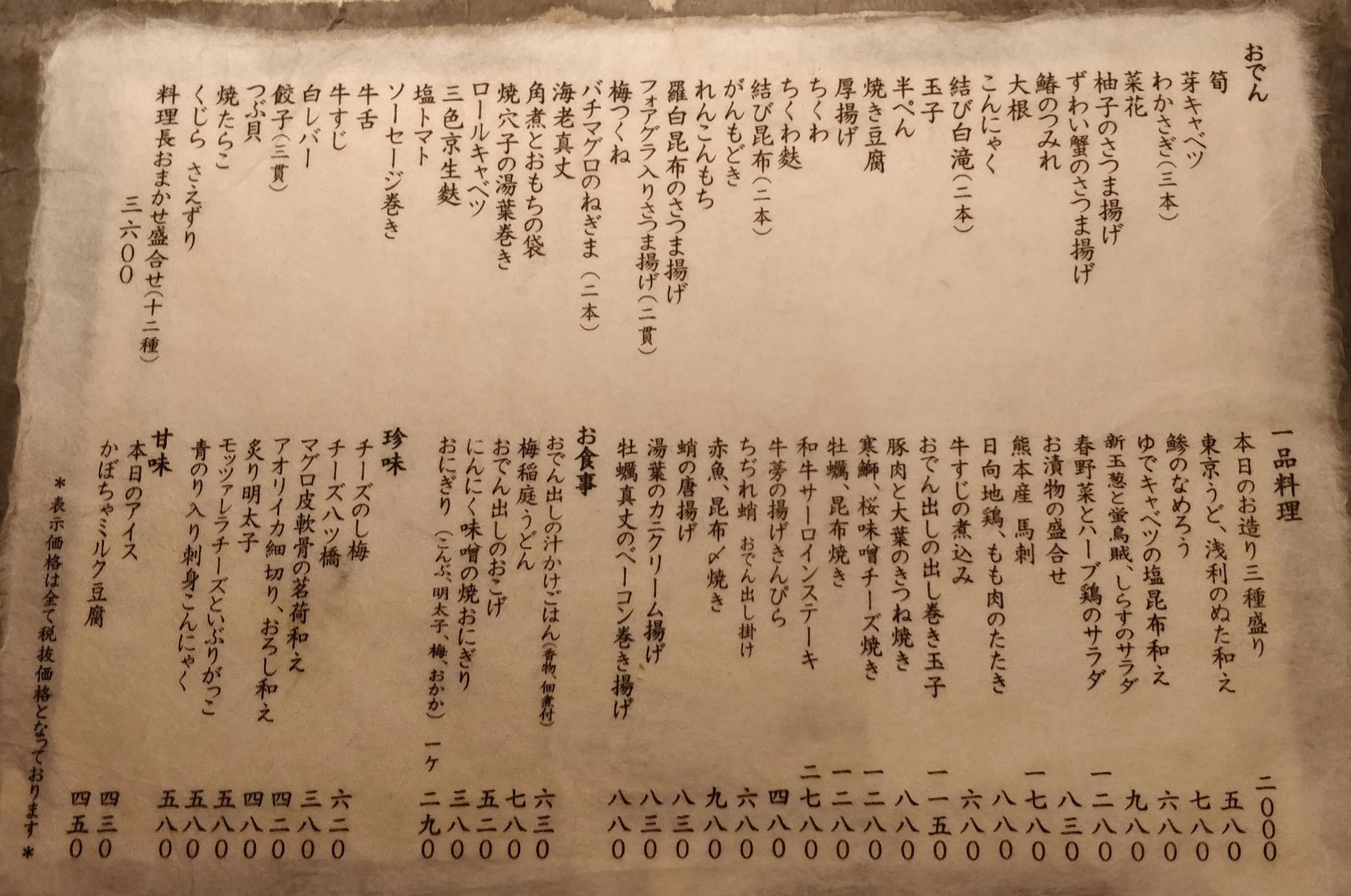

Dense vertical Japanese restaurant menu (oden / ippin style) photographed as a real-world OCR target for the crop-and-predict demo. — Dense vertical menu used as a real-world target for the crop-and-predict demo.

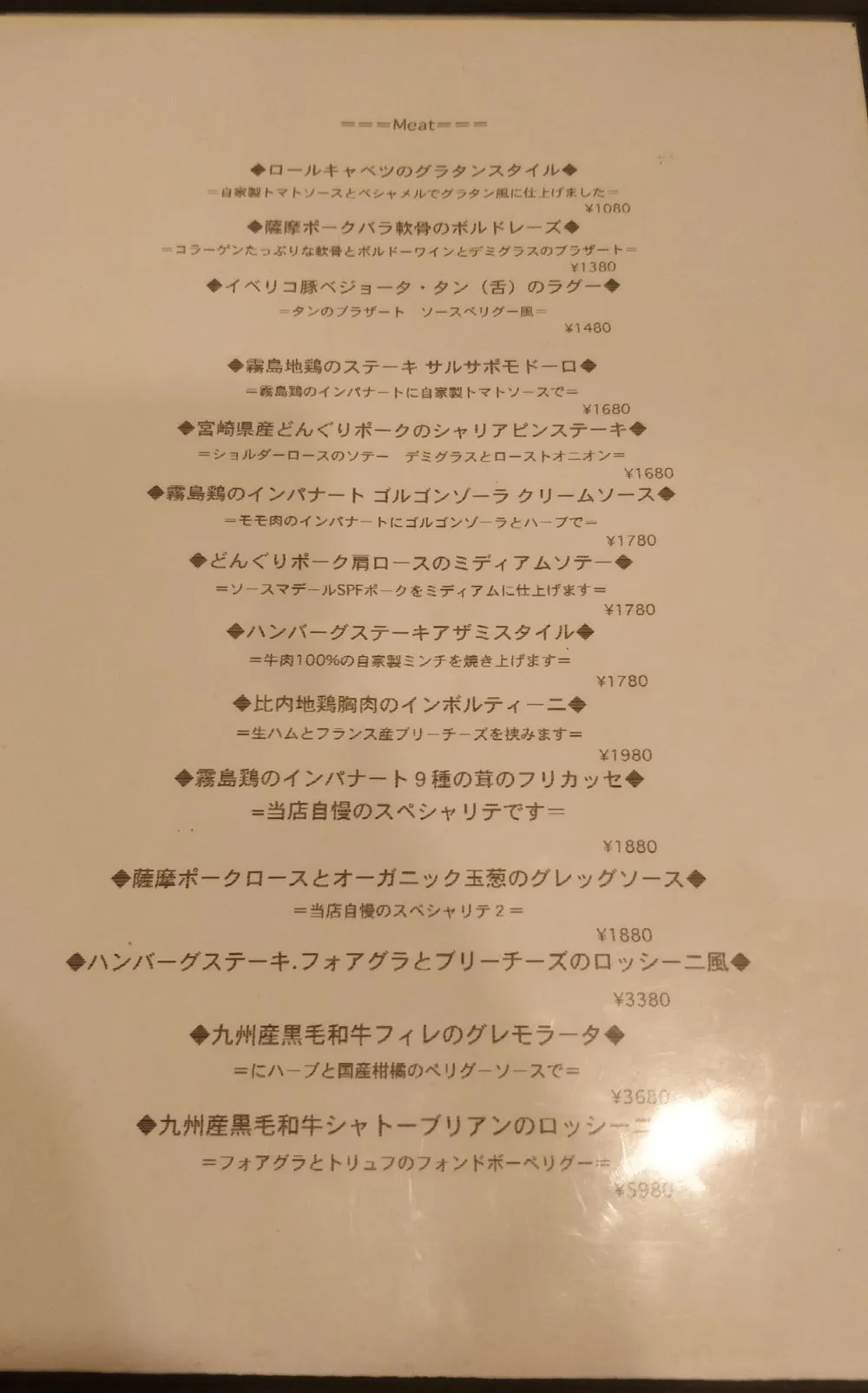

Meat section of a Japanese restaurant menu listing pork, chicken, and beef dishes with yen prices. — Meat section from a photographed menu — later used as a CRNN evaluation page.

Stage 1: MNIST and notMNIST

I started with the usual ladders:

notMNIST letter classification (Udacity-style notebook) for pipeline practice
MNIST MLP: Flatten → Dense(512, ReLU) → Dense(10, softmax), 5 epochs, batch 128 → about 97.95% test accuracy
MNIST CNN experiments with ImageDataGenerator augmentation on Keras 2.2 / TensorFlow 1.8

Those runs were mainly to get comfortable with AWS notebooks, checkpoints, and TensorBoard before scaling the label space.

Stage 2: Synthetic Japanese character CNN

Japanese print needs thousands of classes. Instead of hand-labeling photos, I rendered glyphs from TTF fonts (including TakaoMincho / TakaoGothic and other Japanese faces) into a charset file covering ASCII, kana, and school-kanji ranges — 2,533 classes in the later training scripts.

Architecture (`kanji_covnet-20180912_v2`)

Item	Value
Input	32×32×1 grayscale
Classes	2,533 (softmax)
Conv stack	3× Conv2D(128, 3×3) → pool → 3× Conv2D(256, 3×3) → pool → Dropout(0.2) → Dense
Optimizer	Adam, learning rate `0.00025`
Loop	Per-font passes, 5 epochs, `steps_per_epoch=1000`, batch 64

Characters were drawn at multiple pixel sizes (roughly 16-40 px) then resized to 32×32 so the net saw stroke-width variation. Training used heavy ImageDataGenerator transforms (rotation, shear, shift, zoom, brightness) plus speckle noise so clean digital fonts would transfer better to camera shots.

Horizontal strip of ASCII punctuation and digits on speckled noisy backgrounds used as synthetic OCR training samples. — ASCII strip with speckled backgrounds — the kind of noise injected during training.

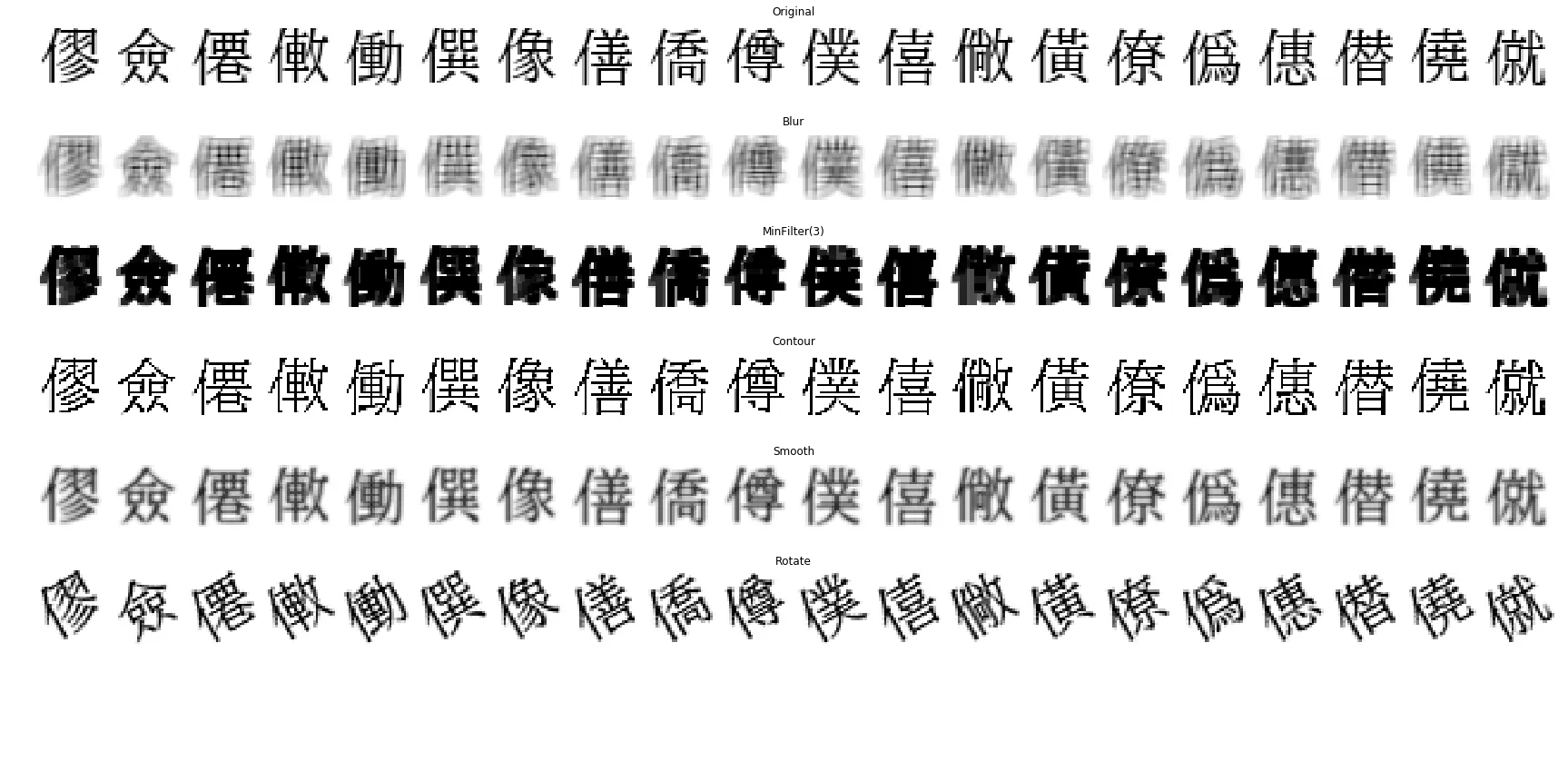

Six rows of the same Japanese character sequence under different augmentations: clean, blurred, bold, high-contrast, soft print, and slanted. — Same glyph sequence under different transforms (clean, blur, weight, slant) to enlarge the effective dataset.

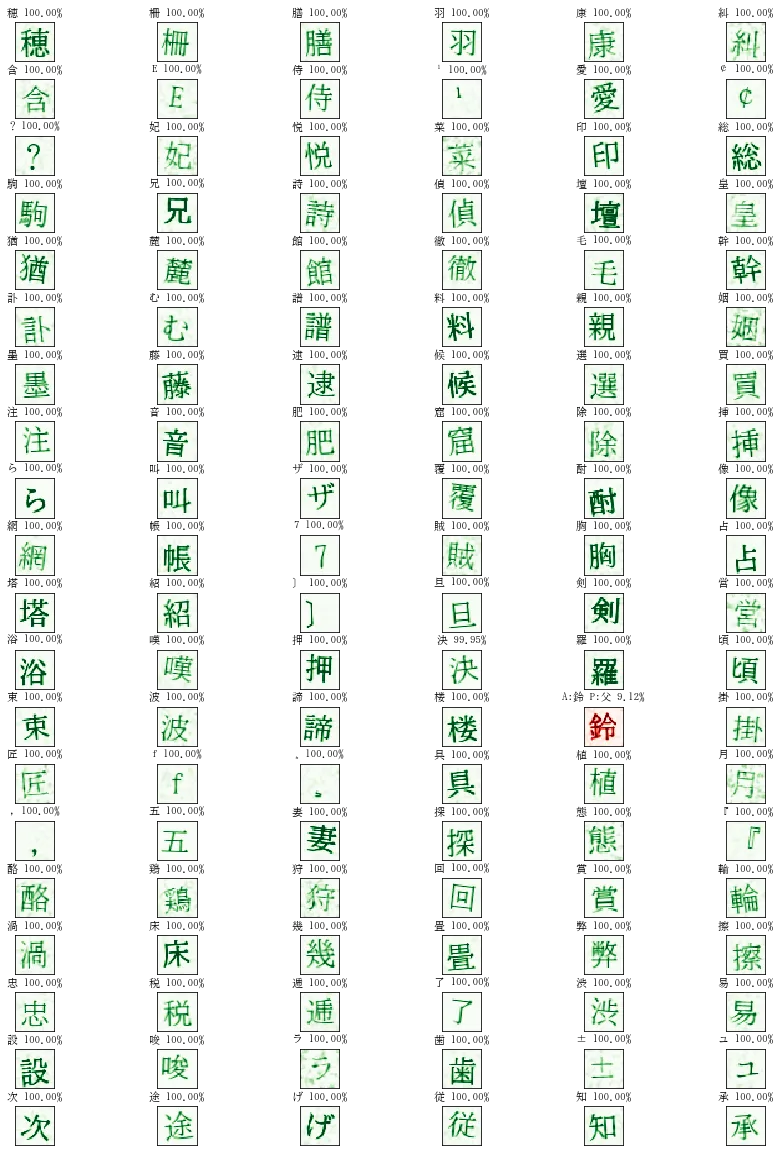

Grid of white tiles on black showing rendered Japanese characters (kanji, kana, and a few Latin symbols) from the character-classifier validator notebook. — Sample grid of rendered / augmented Japanese characters from the validator notebook.

Results on clean fonts

A validator notebook against TakaoMincho renders of all 2,533 classes showed on the order of ~98% top-1 (roughly forty mismatches). Typical failures were lookalikes: 0 vs O, small kana vs full-size forms, へ vs ヘ. On clean glyphs the model often reported near-100% confidence.

The interactive Flask path later switched to a deeper 28×28 variant (model_024, March 2019) with batch norm in the stack, still targeting 2,533 classes.

Stage 3: React + Flask sliding-window demo

Single-character classification alone is not menu OCR. I wrapped inference in:

A React front end (Fabric.js canvas) to crop a line of text from a menu photo
A Flask API (/api/predict/) that slid a window across the crop, scored each 28×28 patch, and returned top-5 character hypotheses

That made it easy to inspect peaks while walking along a line (for example confidence spikes when the window centered on 東).

Sliding-window classification worked for demos but struggled with variable spacing, thin punctuation, and connected layout — which pushed the next step.

Stage 4: CRNN + CTC line OCR (June 2019)

The final package (ml_ocr_20190609) treats each cropped line as a sequence:

Item	Value
Framework	TensorFlow 2.0.0-beta0
Input	1024×32×1
Model	CNN front-end → dual path (pool / stride) → BiGRU×2 (256) → Dense over charset → CTC
Charset	Extended list (~3,864 printable classes; CTC blank / padded class index space up to 4,000)
Weights	Separate horizontal and vertical sets (`weights_horizontal.h5`, `weights_vertical.h5`) plus SavedModel export

On real menu line crops (for example from the meat page below), many dish titles and prices matched exactly — dishes such as ◆薩摩ポークバラ軟骨のボルドレーズ◆ and prices like ¥1380. Typical slips were thin symbols (¥ → Y) and confusable katakana (ベ/ペ, パ/バ). Average processing time was about 357 ms per line in the prediction workbook.

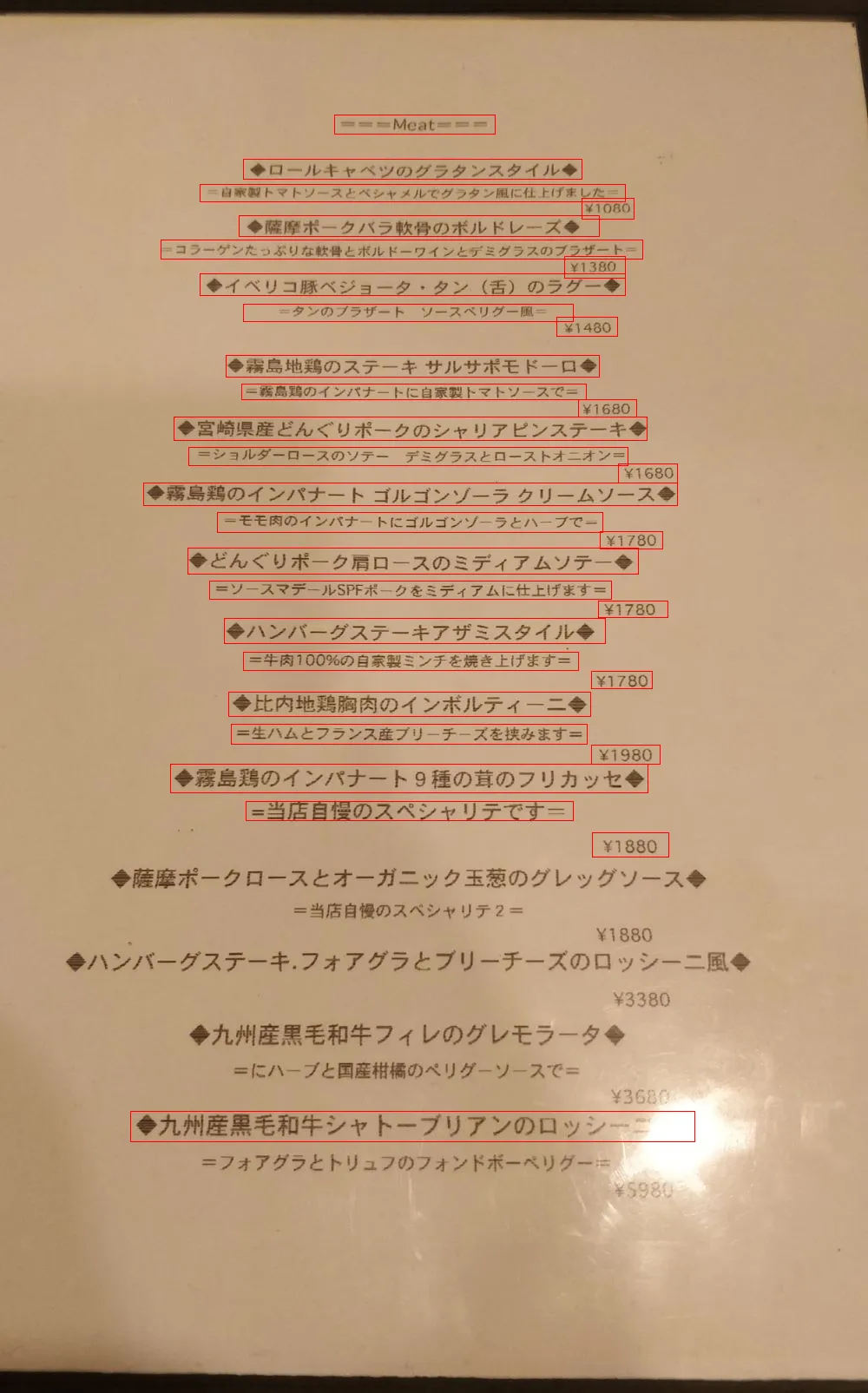

Meat menu page with red bounding boxes around dish titles, descriptions, and prices used for CRNN line-OCR evaluation. — Meat menu with red boxes marking line regions used for sequence OCR evaluation.

What I took away

Synthetic fonts + aggressive augmentation can get a multi-thousand-class Japanese classifier surprisingly far without labeled photos.
Character CNNs are a stepping stone; menus need layout / line models (here CRNN + CTC) rather than only sliding windows.
Error modes are linguistic: lookalike glyphs and punctuation dominate once the network is otherwise strong.
Shipping a small React + Flask loop made training mistakes visible immediately on real restaurant photos.

This project stayed a personal lab notebook rather than a product, but it was the stretch that turned “run MNIST” into “read the menu I just photographed.”
